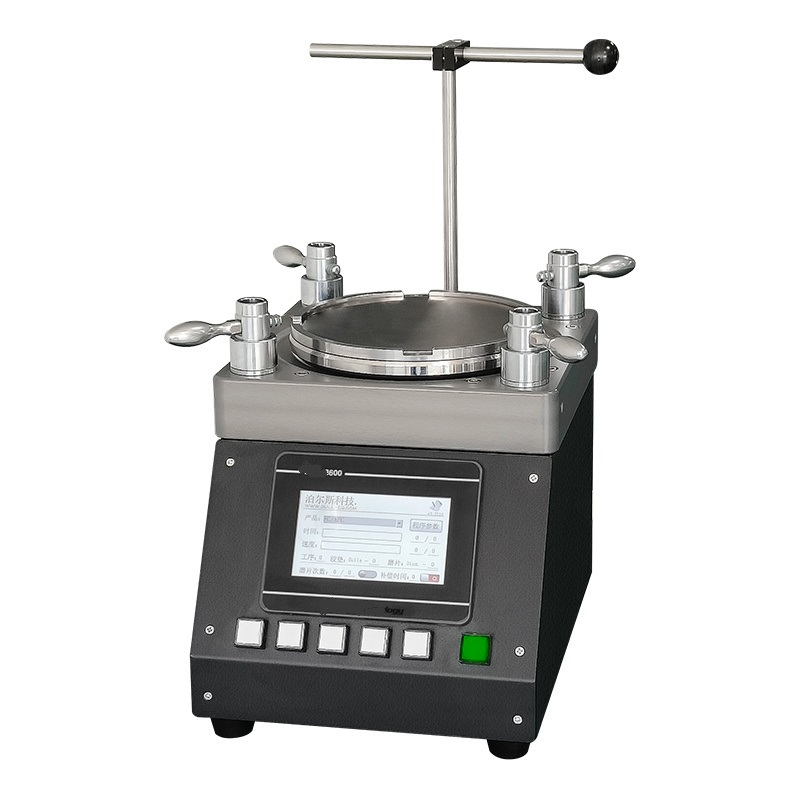

KW-3600
opticwave
Features:
· The use of 6-inch polishing film and rubber pad, while equipped with higher density fixtures, so that the number of polishing products increased by about 50%, greatly improving production efficiency.
· Bulls-3600 optical fiber polishing machine is an upgraded version of the Bulls-3500 optical fiber polishing machine, using 6-inch polishing pads and 6-inch polishing film, compatible with 5-inch fixture of the 3500 model, with excellent accuracy and stability, while maintaining the high yield rate, greatly improving the number of polishing quantities for each time and improving efficiency (about 50%).
· Excellent 3D stability and data concentration.
· Programs can be uploaded and downloaded between the touch screen and the PLC, extending the process range.
· Provide the definition and management of polishing film type, fiber optic rubber pad brand, model, polishing film life and other process parameters.
· Has a number of technical patents.
The comparison of optional fixture between KW-3600 and KW-3500.
| Fixture Type | Rubber Pad Size & Disc Diameter | Connectors | Efficiency Improvement | ||
| KW-3500 | KW-3600 | KW-3500 | KW-3600 | ||
| LC/APC | 127mm/5 inches | 153mm/6 inches | 50 | 72 | 44% |
| LC/UPC | 50 | 72 | 44% | ||
| SC/APC | 28 | 48 | 71% | ||
| SC/UPC | 36 | 48 | 33% | ||
